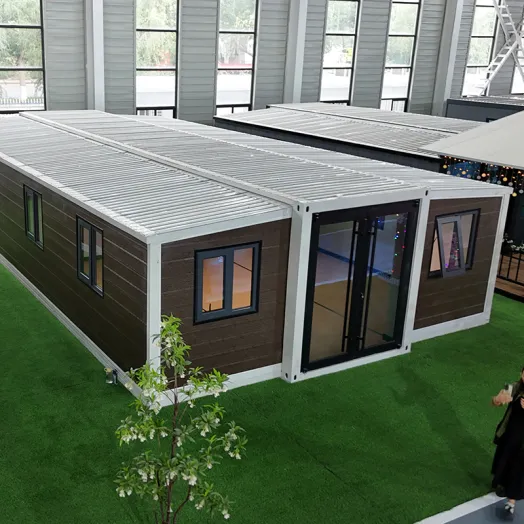

40ft Double Wing Expandable Container House

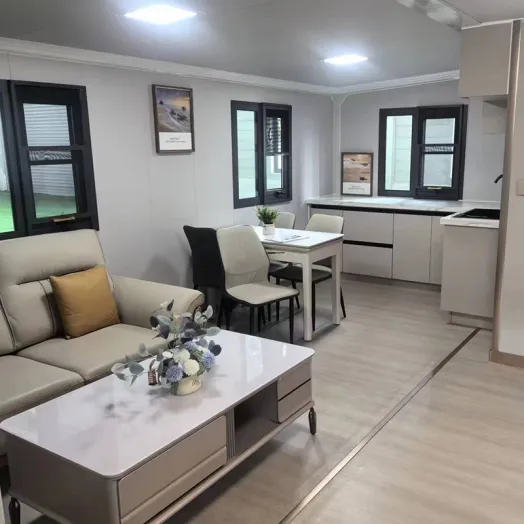

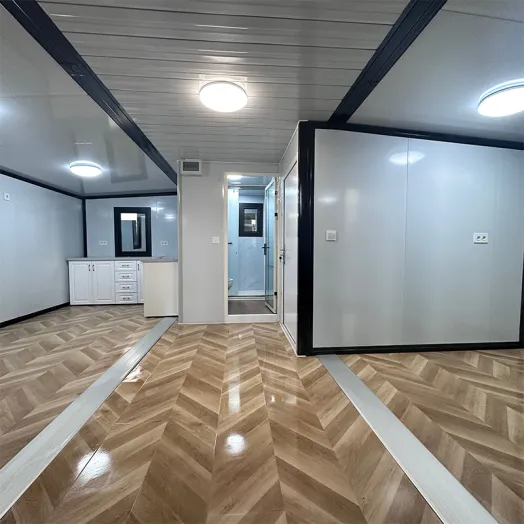

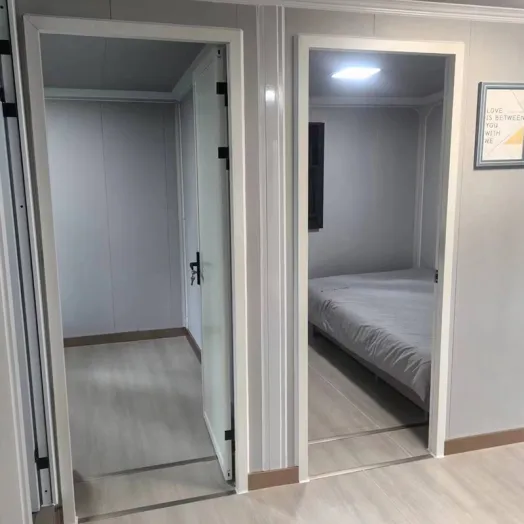

40ft expandable container houset is based on the original container house, the two sides of the expansion, increased three times the space, easy to move and build, so it is also called three-in-one expandable container house or butterfly container house. 40ft Expandable Container House Specifications 72m² Total Area - 11.8m(L) x 6.2m(W) x 2.3m(H) 39.4m² Living & Kitchen, 3.8m² Bathroom, 9.1m² Bedroom One, 8.9m² Bedroom Two, 8.9m² Bedroom Three Approx Weight - 4.6 tonnes House internal plan: bedroom, living room, kitchen, bathroom, etc. Installation: 90% preinstalled in factory, 6people within one day can finish Loading: 1 unit/40’HQ or 1 unit/40’OT Customized available Additional Information Wall Panels 950-type panels with EPS composite core, thickness: 50mm/65mm Flooring Fireproof cement fiberboard (18mm) for the main structure, bamboo plywood (18mm) for extensions Windows Plastic steel double-glazed sliding windows, 920 × 920 mm Doors High-quality steel fire door, 840 × 2035 mm Electrical System Voltage: 220V, 50Hz; includes lighting, sockets, and switches Accessories Corners, skirting, waterproof tape, sealants, etc. Shipping 1 set fits in a 40ft high-cube container Frame Structure No. Name Material Specifications 1 Top Side Beam Galvanized 80 × 140 × 3.0 mm square tube 2 Top End Beam Bent Component 2.5 mm 3 Bottom Side Beam Galvanized 80 × 140 × 3.0 mm square tube 4 Bottom End Beam Bent Component 2.5 mm 5 Galvanized Lifting Lug Galvanized L210 × W150 × H160 mm 6 Steel Column Bent Component 2.5 mm
